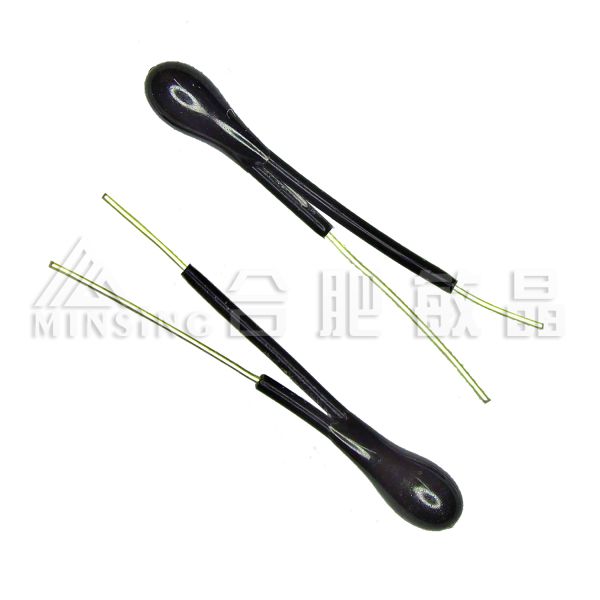

Precision NTC Thermistor | Excellent Thermal Cycle Endurance | Widely Used in Automotive Industry
NTC thermistor sensors for automobiles and vehicles are designed so as to withstand various severe enviromental testing. It feature high accuracy and reliability.
Product Feature:
Custom size and wire configuration / Fast Response Time / Tight tolerance on resistance and Beta value
Application:
Assembly into probes / Liquid or gas temperature control and monitoring
Automotive (Air Conditioning, Cabin Climate Control/Management, External Temperature Monitoring,Heated Seats, Heated Steering Wheels, other)
Specification Explain:
MJ MF 5A-5 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor

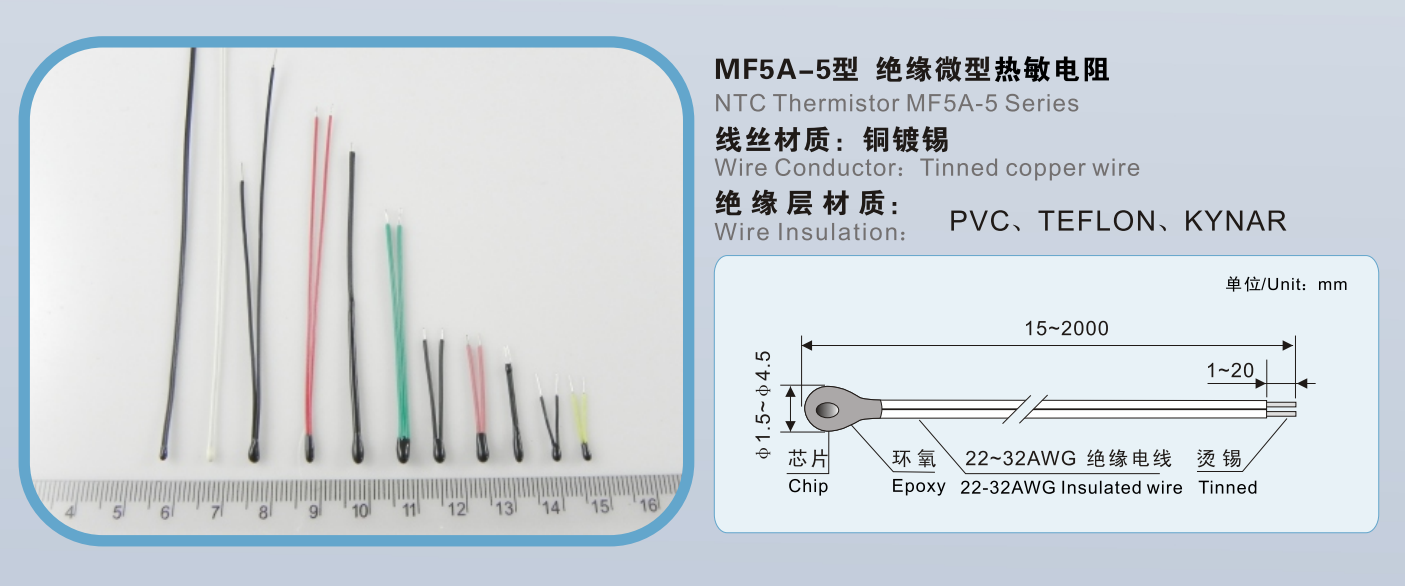

③ Epoxy coating type 5A-5 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification |
R25℃ (KΩ) |
B25/50℃ (K) |
Disspation constant |
Thermal time constant |
Operating temp. range |
| MJMF5A-□-347/395/385-202□ |
2 |
3470/3950/3850 |
ln still air ≥ 2.1mW/℃
|
ln still air
≤ 15s
|
-40～+150℃
|
| MJMF5A-□-327/347/395-502□ |
5 |
3270/3470/3950 |
| MJMF5A-□-338/347/390-103□ |
10 |
3380/3470/3900 |
| MJMF5A-□-395/420/405-473□ |
47 |
3950/4200/4050 |
| MJMF5A-□-395/420/405-503□ |
50 |
3950/4200/4050 |
| MJMF5A-□-395/348-152□ |
1.5 |
3950/3480 |
| MJMF5A-□-397/418-104□ |
100 |
3970/4180 |
| MJMF5A-□-453-105□ |
1000 |
4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.
Tell us your request:
1.The application of the NTC thermistor:__________
2.Working environment of NTC thermistor:________
3.Operation temperature range:___℃ to ___℃
4.Any requirement about sensor probe material or dimension:______________
5.The R value:___K ohm ±___% at ___℃,
6.The B value: B(____℃/____℃) = _____K ± ___%
